Login to Internal Wiki¶ Updating the GUI Screen
Here's the material you will need to do the procedure:
- An SD card with a size of 16GB or more
- USB reader for SD cards
- The free software Balena Etcher
- The new software image
Once you have everything by your side, here's the steps to successfully flash the SD card with the new version:
- Download image
- Insert sd card to be flashed into computer

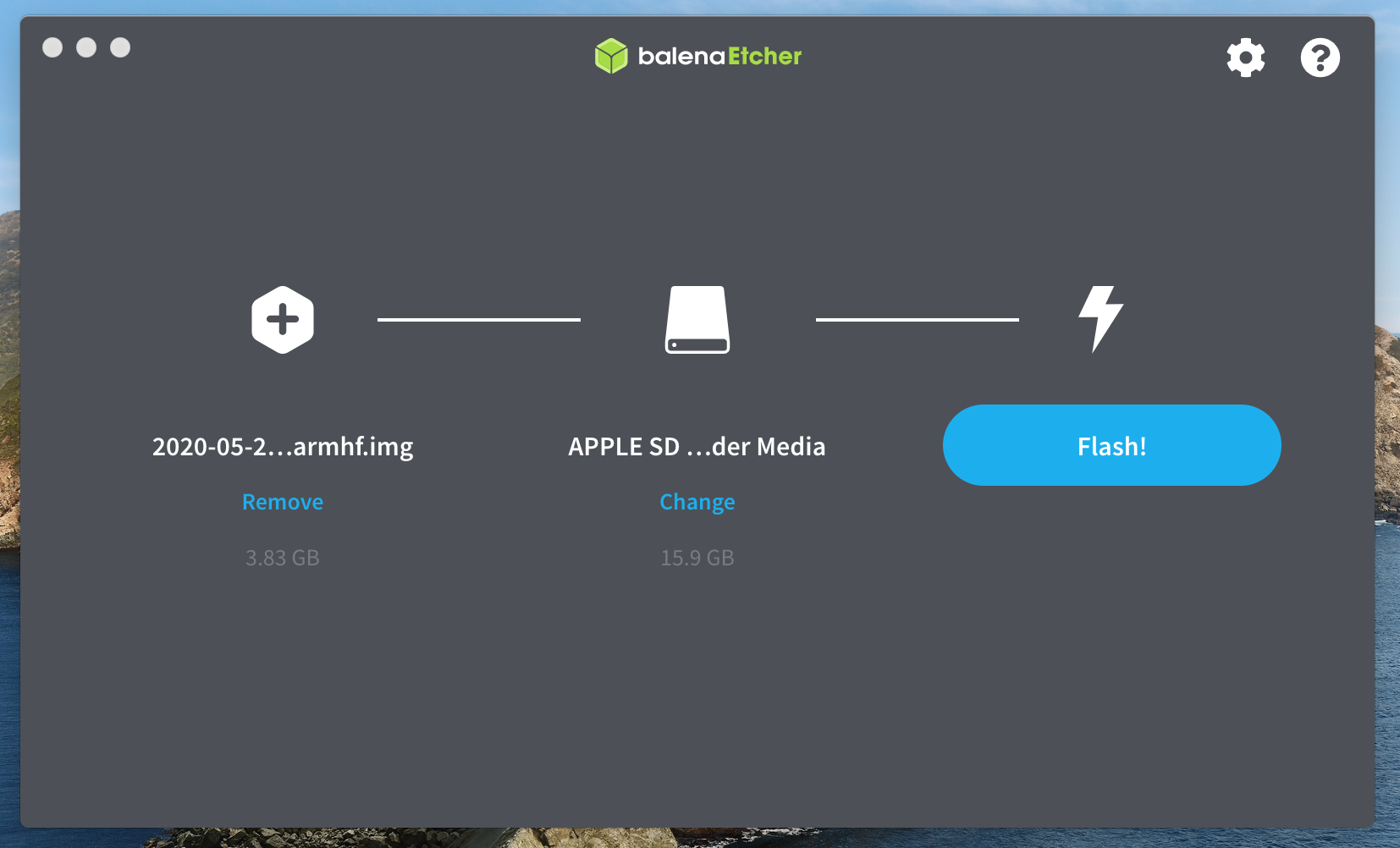

- Start belena Etcher
- Click 'Flash from file'
- Select your image
- Click 'Select target'
- Select your sd card
- Click 'Flash'. It should take 15 to 20 minutes.
- Once finished, pull out the SD card and insert it on the blue board behind the humidifier's screen. Before inserting, make sure the unit is off.
- You can now boot the unit back on.
¶ Updating the Controller of IER Boards
To complete the update, you will need:
- Mini USB cable
- STM32CubeProgrammer (free software available at https://www.st.com/en/development-tools/stm32cubeprog.html)
- The following binary file:
https://u.pcloud.link/publink/show?code=XZQ4pq5Z9lLx8zsiSwk3tVzdhgEkejci707y
Watch the video below for a step-by-step guide on updating the controller:
